How to write a fractal formula?
A tutorial for those who hate math: Part II
. . . How to make a long story short?

Sign Name Function
+ PlusAddition
- MinusSubtraction
* AsteriskMultiplication
/ SlashDivision
^ Circumflex Raise to Power
In chapter I have written some long lines with a chain multiplication of the letter "Z" like this:
Z = Z * Z * Z * Z * Z * Z * Z + C
What we have here is the letter Z multiplied by itself 7 times. This could be written in a much shorter way, using a computer-math convention - the circumflex sign. This sign is seen at the bottom of the left table in red. You write the letter Z, then the circumflex sign, and then the number of times that Z appears in the multiplication chain. So this very long line of 7 "Z" letters with asterisks between them could be written in short like this: Z = Z ^ 7


How to make more complex patterns?

Function Name
sin(Z) sinus
cos(Z) cosinus
tan(Z) tangents
cotan(Z) cotangents
asin(Z) arc-sinus
acos(Z) arc-cosinus
atan(Z) arc-tangents

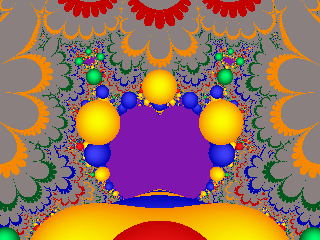

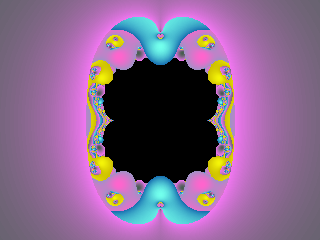

Up to now we have seen the four math signs that we have used between the "Z"s and "C"s. These signs are called math "operators" because they are causing the four math operations: add, subtract, multiply and divide. Now to add some more interesting patterns to the fractal we need to increase the power of the curves, which could be achieved by adding the "trigonometric" functions. Don't be impressed by the titles and names - just use these function instead of the letters "Z" or "C" or in place of a math sign. Just try any one you wish in any place and enjoy the graphical results. In pictures 7 and 8 you can see how I have used the sinus function in picture 7 and the atan function in picture 8. In both cases the trig function was added with the multiplication operator. Please note, that all trig function have brackets. Inside the brackets you have to put a letter, either "Z" or "C". You can also insert a number into the brackets, but then the string: sin(123) is a constant number, and the fractal formula will cause a change along axis and zooming but not of patterns.

Z = Z ^ 2  * sin(Z)  + C
Picture 7.
Formula: Z = Z ^ 2 * sin(Z) + C
Z = Z ^ 2  * atan(C)  + C
Picture 8.
Formula: Z = Z ^ 2 * atan(C) + C


How to bend the curves even more?

Function Name
sinh(Z) sinus-hyperbolic
cosh(Z) cosinus-hyperbolic
tanh(Z) tangents-hyperbolic
cotanh(Z) cotangents-hyperbolic
asinh(Z) arc-sinus-hyperbolic
acosh(Z) arc-cosinus-hyperbolic
atanh(Z) arc-tangents-hyperbolic
Here is the last set of trig functions, this time they are called: hyperbolic functions. Again don't pay attention to names, just use these functions as you have used the previous ones. You can use the trig function at any place in the formula line, replacing either or both "Z" and "C".

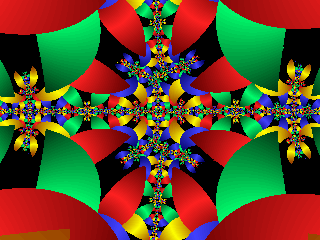

In picture 9 I used the sinh(Z) as the power of "Z". The formula looks like this:
Z = Z ^ sinh(Z) + C

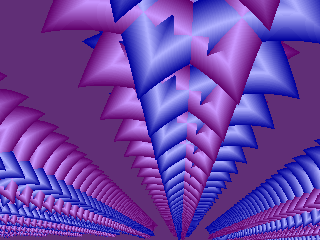

In picture 10 I used the atanh(C) as the power of "Z". The formula looks like this:
Z = Z ^ atanh(C) + C

Please notice that in picture 9 the variable inside the trig function sinh() is "Z" while in picture 10 the variable inside the trig function atanh() is "C".

Z = Z ^ sinh(Z)  + C
Picture 9.
Formula: Z = Z ^ sinh(Z) + C
Z = Z ^ atanh(C)  + C
Picture 10.
Formula: Z = Z ^ atanh(C) + C


The complex initial string

Z = Z ^2  + C

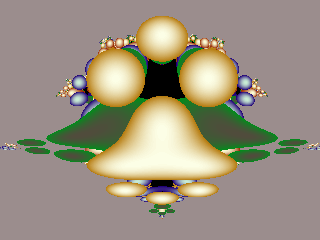

Picture 11.
Formula: Z = Z ^ 2 + C
Initial Z = 0.8 * C * real(C)
To end this short and simple tutorial you have to know, that the initial "Z" value may be a long and complex string, and not only 0 or 1.
In picture 11 I used this complex string:
Z = 0.8 * C * real(C)











More components to play with

Function Name
recip(Z) reciprocal
sqr(Z) square
sqrt(Z) square root
exp(Z) exponential
log(Z) natural log
abs(Z) absolute
Function Name
cabs(Z) cabs
flip(Z) flip
conj(Z) conjugate
real(Z) real
imag(Z) imaginary

Notice that in picture 11 I have used the function real() in the "Z" initialization string. Look at the table below to see all the other math functions that could be used in the same way that we have used all the trig functions.

So all that is left for you now is to start practicing and playing with these components, and to enjoy your own creations from A to Z :-))
